Description

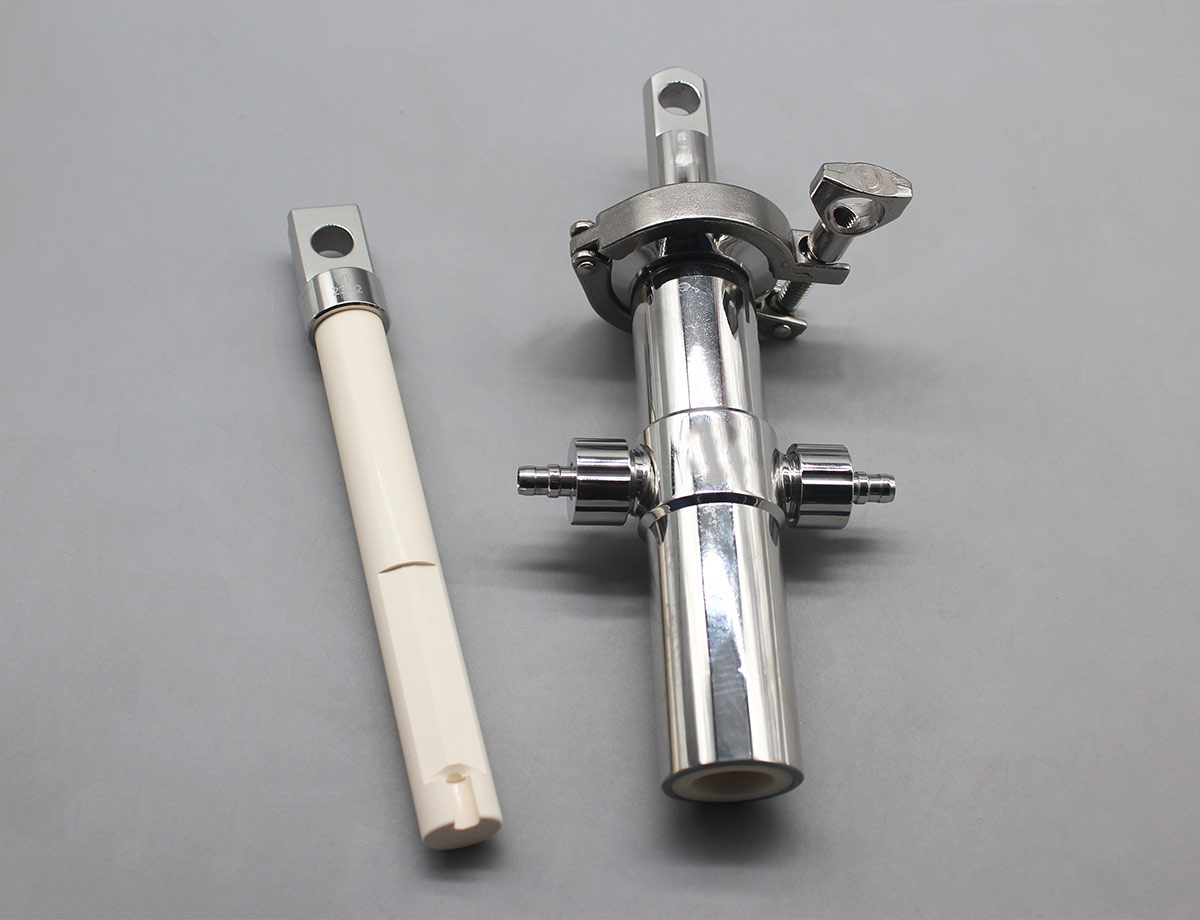

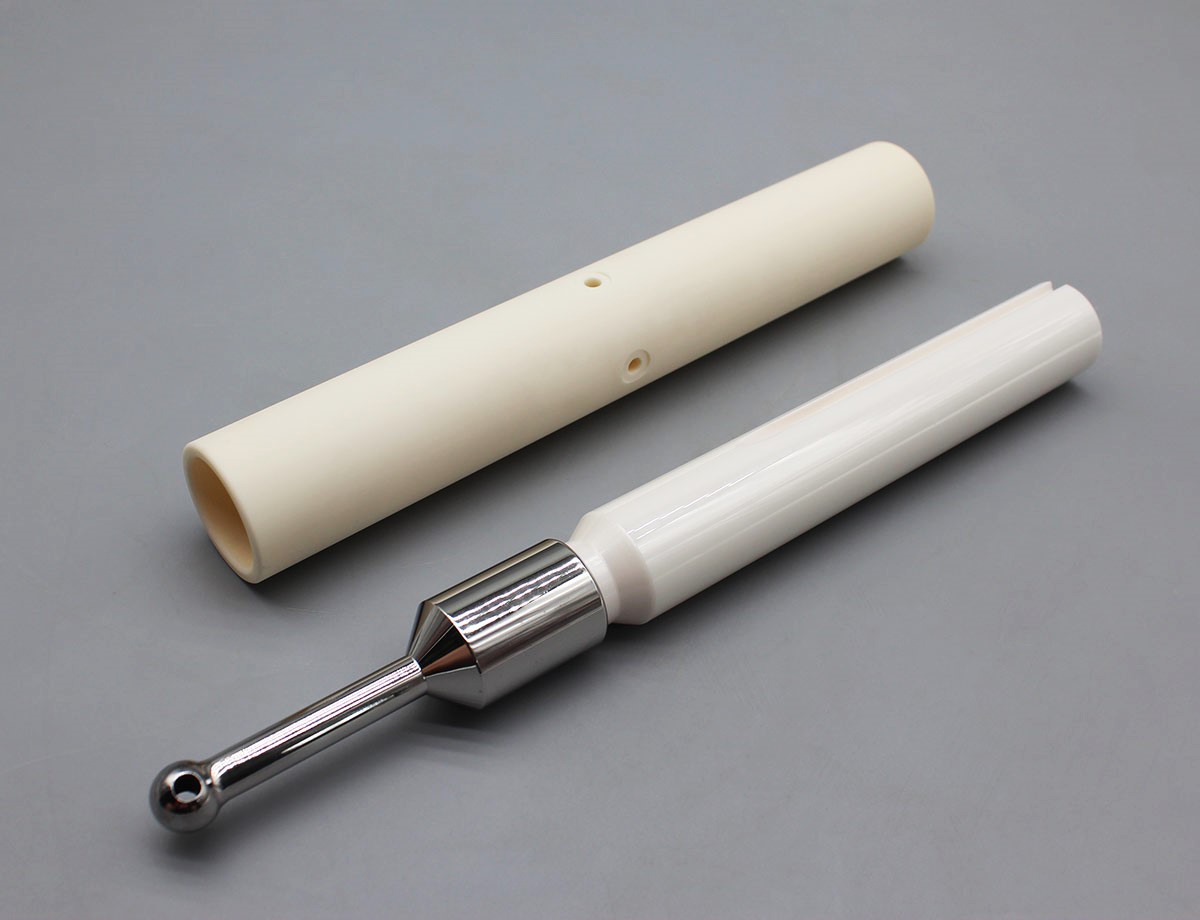

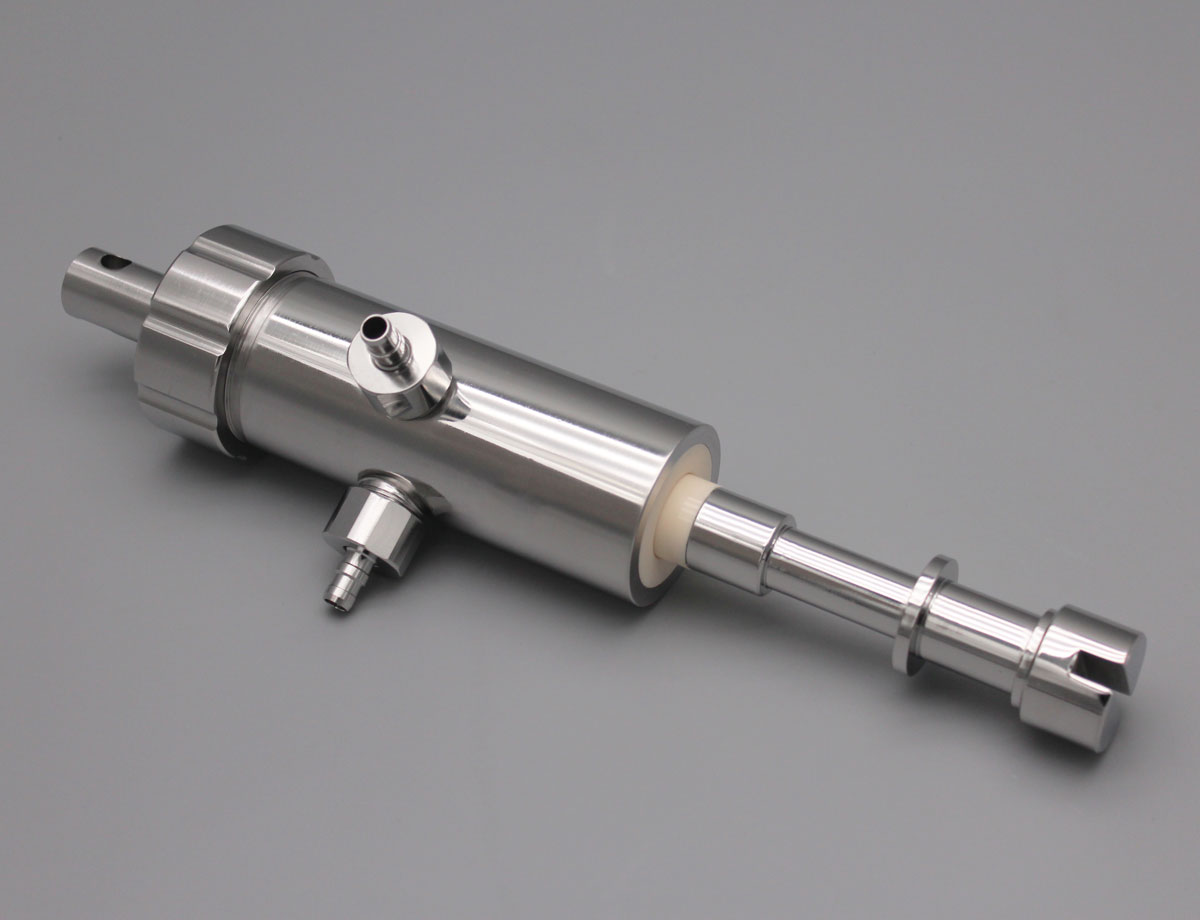

Ceramic metering pump is a plunger type precision metering pump, mainly used for quantitative infusion of various liquids. Ceramic metering pump consists of ceramic pump body, inlet and outlet liquid control rotary valve, metering rod, stainless steel inlet and outlet liquid nozzle.

Working principle

When the hole of the rotary valve of the ceramic metering pump is aligned with the liquid inlet, the ceramic metering rod moves downward in a straight line, generating negative pressure and sucking in liquid.
When the hole of the rotary valve rotates to align with the liquid outlet, the ceramic metering rod moves upward in a straight line, generating positive pressure and discharging the liquid.

Properties

Anti-corrosion: Ceramic metering pumps have excellent acid and alkali resistance due to advanced ceramic materials, which can resist the erosion of various strong acids and alkalis, avoiding rust and breakage of the pump body, thus prolonging the service life of the equipment.

Wear resistance: Advanced ceramic materials have high hardness and excellent wear resistance.

High precision: Ceramic metering pumps are made of high-precision advanced ceramic materials and using a special process, so the product achieves high precision.

No pollution: Most products do not react with advanced ceramic materials.

Cost-effective: Its long service life, low maintenance costs, the overall consideration of cost-effective, especially for some demanding industries.

Self-lubricating: Ceramic metering pump plunger working surface using a unique means of processing and obtaining the microporous organisation has a self-lubricating effect, changing the traditional plunger pump sliding friction and lubrication mechanism.

Installation Friendly: Ceramic metering pumps have an easy-to-use structure and are quick to install.

Applications

Filling machines of various brands
Pharmaceutical Industry
Gel
Liquid
Cream
Syrup
Cosmetic
Chemicals
Other applications

Technical Information

Filling volume range: 0.2ml-500ml
Filling accuracy: ≤ 0.5%
Material Type: Alumina or Zirconia

GW Ceramics provides customized services
